Majestic Collection 9584-S
3 Bed
2 Bath
2,289 Sq. Ft.
57' 4" x 40'

Floor Plan

    Majestic collection 9584-s floor plan home features

    Property map

    Enter your address to check if this home fits on your property

    Enter an address to find homes that fit your lot


    Exterior & Construction

    • Certainteed Architectural Fiberglass Shingles (Nailed, not Stapled) - Limited Lifetime Warranty
    • Asphalt Shingle Underlayment
    • 7/16″ OSB Roof Decking
    • Nominal 3/12 Roof Pitch
    • 9′ Tall Sidewalls (108″) with Flat Ceilings
    • 30# Engineered Roof Load with 24″ o.c Rafter (Higher Roof Loads Available)
    • Full Sidewall Eaves and Overhangs (Model Specific Sizing)
    • Weather Resistant Housewrap Under Siding
    • 8″ Cement Fascia
    • Vented Ridge Cap with Natural Air Flow Eave Venting for Roof Cavity
    • Kinro Low-E Vinyl Framed Windows
    • Foundation Ready Set Back Frame
    • 2x6 Exterior Walls with 16″ o.c Studs
    • Sherwin Williams Exterior Paint 100% Acrylic Satin Finish
    • 19/32″ Tongue & Groove OSB Floor Decking - Double Secured with Nails & Alpha Glue
    • Minimum 2x6 Floor Joists Spaced at 16″ o.c
    • Certified, Award Winning Loop Heat Duct System with In-Floor Crossovers
    • White, 36″ Fiberglass Front Door with Peephole, Knocker and Deadbolt
    • White, 36″ 9-lite Rear Door with Deadbolt
    • White ″High Gloss″ Trim Around Exterior Doors
    • Brushed Nickel Locksets and Hinges - Keyed Alike
    • Black Carriage Style Exterior Porch Lights at Back Door
    • Cement Lap Siding with Structural Sheathing
    • Dormer(s) with Eyebrow and Shake Siding (Model Specific)
    • 5/4″ Window Trim Around All Windows
    • Double 2x4 Marriage Line Walls
    • Energy Star Approved Insulation Package - R33 Floor, R21 Walls, R40 Ceiling
    • ECO/Energy Star Certified Home
    • 2x4 Interior Walls with 24″ o.c Studs
    • Recessed Entry with Composite Decking
    • Exterior Hose Bibb on Front and Back of Home
    • Recessed Can Light at Front Door

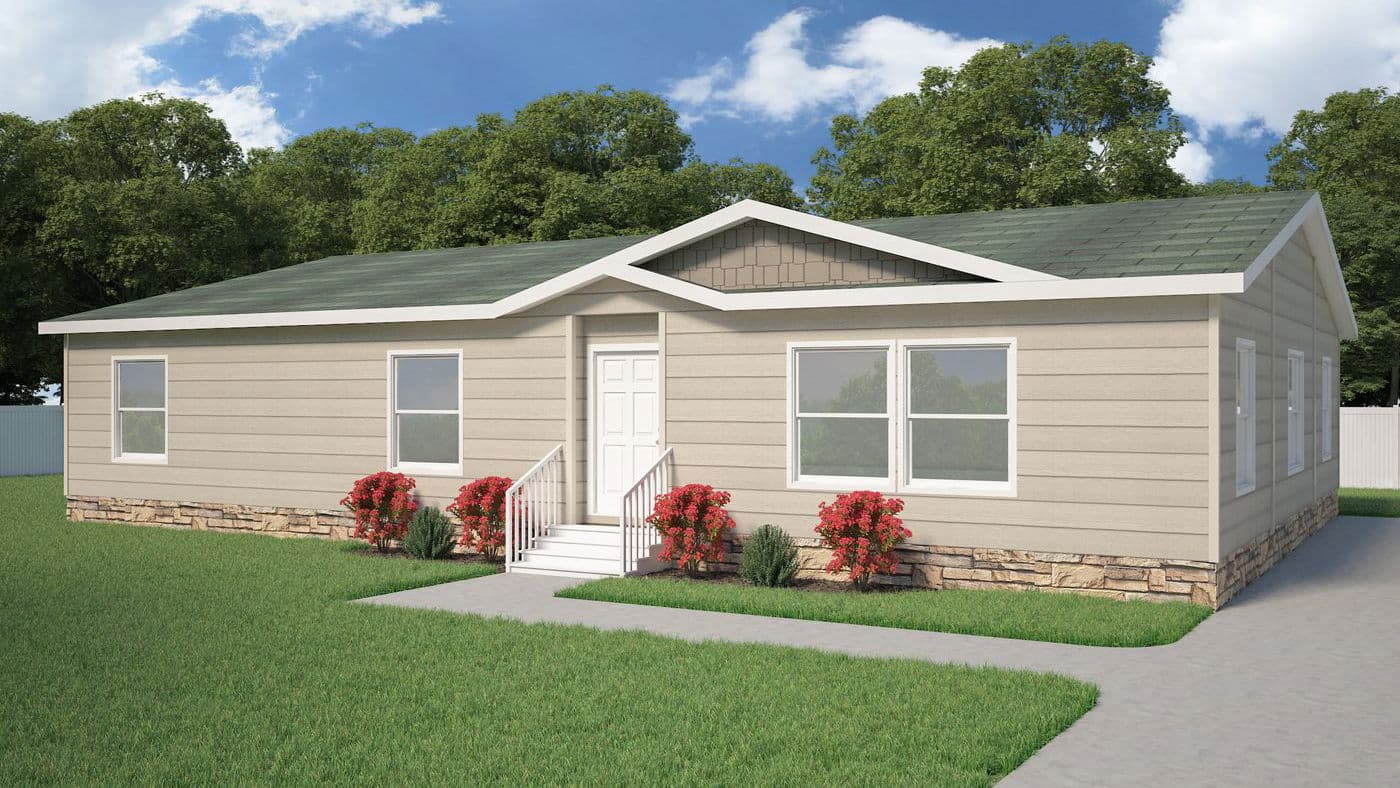

    Majestic collection 9584-s hero, elevation, and exterior home features

    Kitchen

    • All Wood Cabinet Construction with Hardwood Doors
    • 42″ Overhead Cabinets
    • Crown Molding on Overhead Cabinets
    • White Wood Shelving in all Pantries, Closets and Utility Rooms
    • Concealed, Adjustable Hinges on All Cabinet Doors
    • (2) Adjustable Overhead Shelves in Kitchen
    • Refrigerator Overhead Cabinet
    • White Lined Base and Overhead Cabinets
    • 3/8″ Dadoed Wood Drawers
    • Deluxe, Full Extension, Ball Bearing Drawer Guides
    • Brushed Nickel Knobs on Cabinet Doors and Drawers
    • Bank of 3 Drawers in Kitchen
    • Drawer over Door Cabinet Construction in Kitchen
    • 8″ Deep Stainless Steel Kitchen Sink
    • Fire Extinguisher Under Kitchen Sink
    • Laminate Countertops and Edge
    • Full Height Tile Backsplash in Kitchen (Includes Behind the Range)
    • 1 Set of Pot and Pan Pullout Shelves
    • Utility Room Bench Seat (Model Specific)
    • (2) Glass Accent Overhead Cabinet Doors in Kitchen
    • Pfister Brushed Nickel 1-Handle Pull Down Faucet
    Majestic collection kitchen home features

    Bathroom

    • Power Exhaust Fan
    • Elongated Stools
    • 2 Bulb Vanity Light Above Bathroom Sink
    • Privacy Locks on All Baths
    • Pfister Faucet Package in All Tubs/Showers - Brushed Nickel
    • Brushed Nickel Towel Bars and Tissue Holders
    • Pfister Brushed Nickel Dual Lever Faucets
    • White Square China Sinks with Pop Up Drain and Overflow
    • Deluxe Master Bath with Window, Walk-In Shower, Deck Tub, Dual Sinks and Linen Cabinet (Model Specific)
    • 36″x60″ Fiberglass One Piece Tub/Shower in Hall Baths
    • Bank of Drawers in Master Bathroom and Guest Bath
    • Laminate Countertops with Tile Backsplash
    • Dual Lever Tub Faucet in Master Bath
    • Linen Cabinet in Master Bathroom (Model Specific)

    Interior

    • Orange Peel Tape and Textured Walls and Ceilings with Radius Corners
    • Sherwin Williams Interior Eggshell Paint with Spray on Vapor Barrier Primer
    • Flat Ceiling with Orange Peel Finish
    • 25oz Shaw Carpet with Stain and Soil Resistance Treatment
    • Congoleum LuxFlor Vinyl Sheet Flooring with Scotchguard Protector
    • Foyer Linoleum
    • White ″High Gloss″ Base Trim in Vinyl Sheet Flooring Areas
    • 2-Panel Cathedral Interior Doors with 3 Morticed Hinges and Round Knobs
    • Brushed Nickel Door Hardware with Round Brushed Nickel Knobs
    • White Wood Window Sills in Living Areas and Laminate Sills in Wet Areas
    • White Trim Ring, 2 Bulb, Surface Mount Ceiling Lights in Bedrooms
    • 6″ Recessed Can Lights in Kitchen, Baths, Utility Room, Dining Room and Hallways
    • White ″High Gloss″ Door Casing Throughout Home
    • 2″ White Faux Wood Mini Blinds
    • Designer Drape Package in Select Locations


    Images of homes are solely for illustrative purposes and should not be relied upon. Images may not accurately represent the actual condition of a home as constructed, and may contain options which are not standard on all homes.

    Majestic Collection 9584-S

    3 bedrooms (sleeps 3-6)

    2 full bathrooms

    2,289 sq. ft.

    57' 4" x 40'

    Majestic Collection standard features

    Construction

    • Certainteed Architectural Fiberglass Shingles (Nailed, not Stapled) - Limited Lifetime Warranty
    • Asphalt Shingle Underlayment
    • 7/16″ OSB Roof Decking
    • Nominal 3/12 Roof Pitch
    • 9′ Tall Sidewalls (108″) with Flat Ceilings
    • 30# Engineered Roof Load with 24″ o.c Rafter (Higher Roof Loads Available)
    • Full Sidewall Eaves and Overhangs (Model Specific Sizing)
    • Weather Resistant Housewrap Under Siding
    • 8″ Cement Fascia
    • Vented Ridge Cap with Natural Air Flow Eave Venting for Roof Cavity
    • Kinro Low-E Vinyl Framed Windows
    • Foundation Ready Set Back Frame
    • 2x6 Exterior Walls with 16″ o.c Studs
    • Sherwin Williams Exterior Paint 100% Acrylic Satin Finish
    • 19/32″ Tongue & Groove OSB Floor Decking - Double Secured with Nails & Alpha Glue
    • Minimum 2x6 Floor Joists Spaced at 16″ o.c
    • Certified, Award Winning Loop Heat Duct System with In-Floor Crossovers
    • White, 36″ Fiberglass Front Door with Peephole, Knocker and Deadbolt
    • White, 36″ 9-lite Rear Door with Deadbolt
    • White ″High Gloss″ Trim Around Exterior Doors
    • Brushed Nickel Locksets and Hinges - Keyed Alike
    • Black Carriage Style Exterior Porch Lights at Back Door
    • Cement Lap Siding with Structural Sheathing
    • Dormer(s) with Eyebrow and Shake Siding (Model Specific)
    • 5/4″ Window Trim Around All Windows
    • Double 2x4 Marriage Line Walls
    • Energy Star Approved Insulation Package - R33 Floor, R21 Walls, R40 Ceiling
    • ECO/Energy Star Certified Home
    • 2x4 Interior Walls with 24″ o.c Studs
    • Recessed Entry with Composite Decking
    • Exterior Hose Bibb on Front and Back of Home
    • Recessed Can Light at Front Door

    Interior

    • Orange Peel Tape and Textured Walls and Ceilings with Radius Corners
    • Sherwin Williams Interior Eggshell Paint with Spray on Vapor Barrier Primer
    • Flat Ceiling with Orange Peel Finish
    • 25oz Shaw Carpet with Stain and Soil Resistance Treatment
    • Congoleum LuxFlor Vinyl Sheet Flooring with Scotchguard Protector
    • Foyer Linoleum
    • White ″High Gloss″ Base Trim in Vinyl Sheet Flooring Areas
    • 2-Panel Cathedral Interior Doors with 3 Morticed Hinges and Round Knobs
    • Brushed Nickel Door Hardware with Round Brushed Nickel Knobs
    • White Wood Window Sills in Living Areas and Laminate Sills in Wet Areas
    • White Trim Ring, 2 Bulb, Surface Mount Ceiling Lights in Bedrooms
    • 6″ Recessed Can Lights in Kitchen, Baths, Utility Room, Dining Room and Hallways
    • White ″High Gloss″ Door Casing Throughout Home
    • 2″ White Faux Wood Mini Blinds
    • Designer Drape Package in Select Locations

    Mechanical

    • PEX Plumbing System with Poly-Alloy Fittings
    • Copper Wiring Throughout - Fully Grounded
    • Wired and Vented for Clothes Dryer
    • Plumbed and Wired for Clothes Washer
    • Frigidaire 25.5 Cu. Ft., Side-by-Side Refrigerator (Stainless Steel)
    • Frigidaire 30″ Freestanding Electric Range (Stainless Steel)
    • Frigidaire 24″ Built-In Dishwasher (Stainless Steel)
    • Frigidaire 1.6 Cu. Ft. Over-the-Range Microwave (Stainless Steel)
    • Rheem, 50 Gallon Electric Water Heater with Dual Element & Pan
    • Freezer Receptacle in Utility Room (Model Specific)
    • Smart Comfort by Carrier Electric Furnace - Sized Accordingly
    • Wire and Brace for Celing Fan in Living and Family Rooms
    • Switched Electrical Wall Receptacle in Living and Family Rooms
    • EcoBee3 Lite Programmable Thermostat
    • Whole House Exhaust Fan for Fresh Air Exchanges and Ventilation
    • Exterior GFI on Back Door Side
    • Air Conditioning Ready with (2) 3/4″ Conduit and Empty Breaker Slot
    • Combination Smoke / Co2 Detectors with Battery Backup
    • Whole House Water Shut Off Valve
    • Individual Plumbing Shut Off Valves at All Sinks and Stools
    • Total Electric Home with 200 Amp Service (Gas Available)

    Kitchen

    • All Wood Cabinet Construction with Hardwood Doors
    • 42″ Overhead Cabinets
    • Crown Molding on Overhead Cabinets
    • White Wood Shelving in all Pantries, Closets and Utility Rooms
    • Concealed, Adjustable Hinges on All Cabinet Doors
    • (2) Adjustable Overhead Shelves in Kitchen
    • Refrigerator Overhead Cabinet
    • White Lined Base and Overhead Cabinets
    • 3/8″ Dadoed Wood Drawers
    • Deluxe, Full Extension, Ball Bearing Drawer Guides
    • Brushed Nickel Knobs on Cabinet Doors and Drawers
    • Bank of 3 Drawers in Kitchen
    • Drawer over Door Cabinet Construction in Kitchen
    • 8″ Deep Stainless Steel Kitchen Sink
    • Fire Extinguisher Under Kitchen Sink
    • Laminate Countertops and Edge
    • Full Height Tile Backsplash in Kitchen (Includes Behind the Range)
    • 1 Set of Pot and Pan Pullout Shelves
    • Utility Room Bench Seat (Model Specific)
    • (2) Glass Accent Overhead Cabinet Doors in Kitchen
    • Pfister Brushed Nickel 1-Handle Pull Down Faucet

    Bathroom

    • Power Exhaust Fan
    • Elongated Stools
    • 2 Bulb Vanity Light Above Bathroom Sink
    • Privacy Locks on All Baths
    • Pfister Faucet Package in All Tubs/Showers - Brushed Nickel
    • Brushed Nickel Towel Bars and Tissue Holders
    • Pfister Brushed Nickel Dual Lever Faucets
    • White Square China Sinks with Pop Up Drain and Overflow
    • Deluxe Master Bath with Window, Walk-In Shower, Deck Tub, Dual Sinks and Linen Cabinet (Model Specific)
    • 36″x60″ Fiberglass One Piece Tub/Shower in Hall Baths
    • Bank of Drawers in Master Bathroom and Guest Bath
    • Laminate Countertops with Tile Backsplash
    • Dual Lever Tub Faucet in Master Bath
    • Linen Cabinet in Master Bathroom (Model Specific)
